خانه/ تجهیزات اندازه گیری/ پارامترهای فیزیکی/ شیب سنج/ Jewell Instruments/ Jewell Instruments Model A820 Series Tiltmeter
26906
شیب سنج

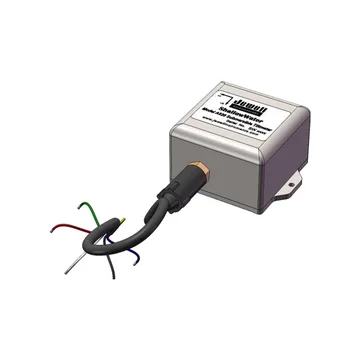

Jewell Instruments Model A820 Series Tiltmeter

برند :

Jewell Instruments

شماره انبار :

ST-56270

زمان تحویل:

19 هفته

قیمت حدودی:

369,140,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

Description / توضیحات

Features

  • 0.0001°/0.0006°/0.01° resolution
  • 316 SS housing
  • 6-pin bulkhead, male plug housing connector
  • ±5VDC (single ended) output
The Jewell Instruments Model A820 Series tiltmeter is a high precision submersible tiltmeter for use in fresh and salt water applications. Using an absolute gravity referenced electrolytic sensor, the A820 delivers superior measurement accuracy with virtually no long-term drift. High-gain units are sensitive to less than 0.0017 mm/m or better. Output is a stable ±5 DC voltage, which can be read with any VDC input data recorder. All units are rated to 200 meters waterproof for advanced protection from the elements. Use the A820 "Shallow Water" for structural monitoring, angle measurement and control, platform leveling and more.

Attachment / فایل ضمیمه

Jewell Instruments Model A820 Series Tiltmeter Datasheet PDF
