Features
- ±1.0°, ±3.0°, ±14.5°, ±30.0° or ±60.0° range
- -68 to 149°F (-20 to 65°C) compensated
- RS485 digital output
- Withstands up to 100g shock
- IP67 seal
- Integrated temperature sensor
- Selectable filtering
- RoHS Compliant

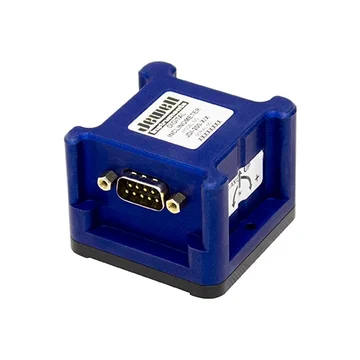

Jewell Instruments JDI Series MEMS Inclinometers are ruggedized, digitally temperature compensated inclinometers available in single- (JDI-100)
and dual- (JDI-200) axis configurations. They include digital output and full temperature compensation across all measuring ranges which enables the unit to perform to 0.005° accuracy.
The JDI series features standard ranges of ±1°, ±3°, ±14.5°, ±30° and ±60° with a 0.0001° digital resolution and RS485 interface output. These tilt sensors are RoHS compliant to satisfy environmental standards. With a lightweight aluminum enclosure and an IP67 seal, the JDI can serve a diverse number of OEM and industrial applications.
Jewell Instruments JDI Series MEMS Inclinometer Applications
Industrial automation & control
Construction & agricultural equipment
Solar tracking
Mobile cranes
Platform leveling/positioning
Mobile radar equipment
Bridge monitoring
