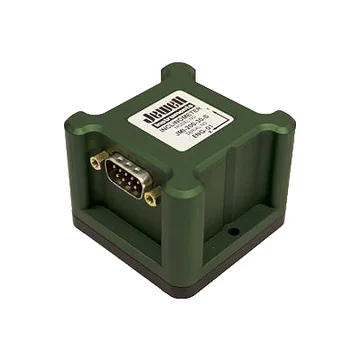

Jewell Instruments JMI Series MEMS Inclinometers

Features

• -104 to 185°F (-40 to 85°C)
• ±5VDC, 0-5VDC, or 4 to 20mA outputs
• Withstands up to 100g shock
• Single and dual power input
• IP65 seal
• RoHS compliant

The Jewell Instruments JMI Series MEMS Inclinometers are ruggedized tilt sensors available in single- (JMI-100) and dual- (JMI-200) axis configurations. The optional single power input version (JMI-100/200-S) with 0-5VDC output signal provides easier operation and reduced power requirements. The JMI series features standard measuring ranges of ±14.5°, ±30° and ±90° with a 0.002° resolution. These tilt sensors are RoHS compliant to satisfy environmental standards. With a lightweight aluminum enclosure, the JMI is conducive to a variety of OEM applications. An IP65 seal, 100g shock and -104 to 185°F operating range makes the unit suitable for many harsh environments. Jewell Instruments JMI Series MEMS Inclinometer Applications Industrial automation & control Construction & agricultural equipment Solar tracking Mobile cranes Platform leveling/positioning Mobile radar equipment Railway track alignment & maintenance
