Features
- Measurement ranges from ±10° to ±90°
- Digital RS232 or RS485 output options
- -40 to 185°F (-40 to 85°C) operating range
- High shock & vibration tolerance
- IP67 rated enclosure
- 1m Cable (standard)

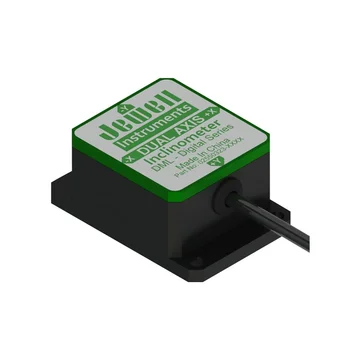

Jewell Instruments DML series inclinometers are low-cost single or dual-axis analog instruments for industrial applications. Incorporating temperature compensated,
micro-machined MEMS capacitive technology, DML series inclinometers are an excellent choice for a range of applications including: solar tracking & panel positioning,
vehicle wheel alignment, industrial automation & control, radar/antenna mast alignment, platform leveling, navigation pitch/roll measurement.
DML series inclinometers are available in ±10˚, ±30˚, ±60˚ or ±90˚ ranges with all ranges having a resolution to 0.05°. Excellent for long term stability, the DML series
features a bias temperature coefficient of just ±0.008°/°C. Either 0-5V or 4-20mA analog output options are available. The instruments are designed with a high tolerance
to shock and vibration and utilize 9 to 36 VDC input voltage. All DML series inclinometers are rated IP67 waterproof up to 1m.
