Features
- Input Ranges From ±3° to ±90°
- Models
- RMIW-S: 0 to 5V DC output with 15 to 30 vdc single power input
- RMIW-D: ±5V DC output with ±12 to ±18 vdc dual power input
- RMIW-L: 4 to 20 mA output with ±12 to ±28 vdc single-ended power input
- Single axis measurement
- Extremely rugged
- Lower cost than traditional force-balanced inclinometers
- Withstands up to 500g shock
- Mounts horizontally or vertically to match the AccuStar footprint
- Greater precision than MEMS technologies
- Non-linearity as low as 0.02%
- 18-inch flying leads
- IP65 rated enclosure

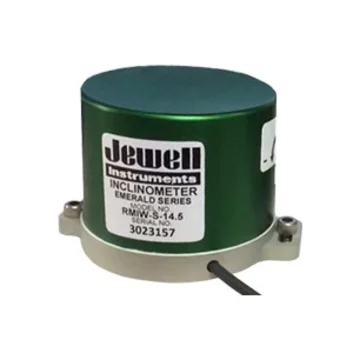

Jewell RMIW series inclinometers are low cost, high precision instruments designed with higher accuracy than comparable MEMS devices. Housed in a rugged, IP65 rated enclosure, the
RMIW series is ideal for application in Applications include robotics, construction equipment, industrial measurement and control, and precision machining.
Jewell RMIW series inclinometers offer single axis measurement of ranges from ±3° to ±90° with non-linearity of up to 0.02%. The RMIW series is available in three configurations: a
0 to 5V DC output unit with 15 to 30V DC single power input; a ±5V DC output unit with ±12 to ±18V DC dual power input; and a 4 to 20 mA output unit with 12 to 28V DC single-ended power
input. Mounting options included: floor mount, vertical wall mount and horizontal wall mount. Each model includes 18-inch flying leads.
