Features
- Measurement ranges from ±10° to ±60°
- RS232, RS422 or RS485 digital output options
- -40 to 185°F (-40 to 85°C) operating range
- High shock & vibration tolerance
- IP67 rated enclosure
- 1m Cable (standard)

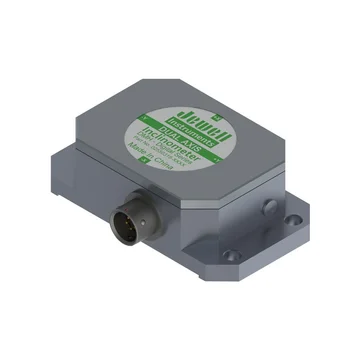

Jewell Instruments DMH series inclinometers are precision single or dual-axis analog instruments that incorporate temperature compensated, micro-machined
MEMS capacitive technology. Designed for high reliability and low non-linearity, DMH series inclinometers are an excellent choice for a range of applications
including: geotechnical monitoring, radar & vehicle platform leveling, drill rig alignment, offshore/subsea platform pitch & roll, industrial measurement &
control, railway track alignment & maintenance pin out, or antenna position control
DMH series inclinometers are high sensitivity instruments available in ±10˚, ±30˚, or ±60˚ ranges. Excellent for long term stability, the DMH series
features a bias temperature coefficient of just ±0.002°/°C. Either RS232, RS422 or RS485 digital output options are available. The instruments are designed with
a high tolerance to shock and vibration and utilize 9 to 36 VDC input voltage.
