Features
- Measurement ranges from ±10° to ±60°
- Analog 0-5V or 4-20mA output options
- -40 to +85°C operating range
- High shock & vibration tolerance
- IP67 rated for waterproofing up to 1m
- 1m Cable (standard)

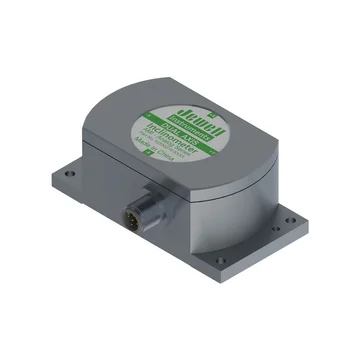

Jewell Instruments AMI series inclinometers are precision single or dual-axis analog instruments that incorporate temperature compensated, micro-machined MEMS
capacitive technology. Designed for high reliability and low non-linearity, AMI series inclinometers are an excellent choice for a range of applications
including: geotechnical monitoring, radar & vehicle platform leveling, drill rig alignment, offshore/subsea platform pitch & roll, industrial measurement &
control, railway track alignment & maintenance pin out, or antenna position control
AMI series inclinometers are high sensitivity instruments, excellent for long term stability. The AMI series features
a bias temperature coefficient of just ±0.0008°/°C. Either 0-5V or 4-20mA analog output options are available. The instruments are designed with a high tolerance
to shock and vibration and utilize 9 to 36 VDC input voltage.
