Features
- Temperature ranges
- 32-2372°F (0-1300°C)
- 1202-3272°F (650 to 1800°C)
- 725-2912°F (385 to 1600°C)
- 1832-3632°F (1000 to 2000°C)
- 8 - 14µm, 1µm, 1.6µm or 525nm spectral range
- 120:1, 300:1 or 150:1 optical resolution
- Accuracy up to
- ±0.3% +2°C (05M, 1M, 2M)
- ±1% + 2°C accuracy (LT)
- 300ms response time
- 0.100 - 1 adjustable emissivity
- Dual laser & scope sighting
- Internal data storage of up to 2000 measured values
- Powered by a Ni-MH rechargeable battery
- USB interface
- CE compliant

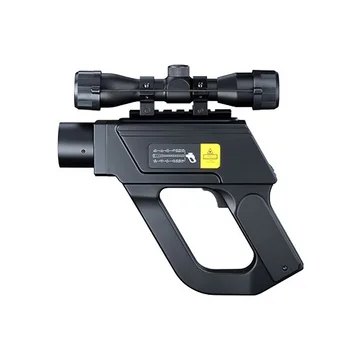

The Optris P20 infrared thermometer delivers highly precise measurement results for objects up to 39.4ft away and up to 3.9in in size. A double laser visor and sighting scope allow the measured object to be targeted at every distance. Four models are available with differing optical resolutions, temperature, and spectral ranges to best suit your application. Additional functions include signal processing, max/min, scan/hold and audible and visible high/low alarms. The LCD backlight provides three color alarm indicators. The Optris P20 also features internal data storage of up to 2000 measured values. The Optris Connect temperature analysis software allows you to setup parameters, display and record temperature trends, and download data. The software also offers an oscilloscope function for 20 measurements per second. The Optris Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, and Windows 7.
