Optris CSlaser 2M Infrared Temperature Sensor

Name: Optris CSlaser 2M Infrared Temperature Sensor
Brand: Optris
Price: 920600000 IRR
Availability: InStock

برند :

Optris

شماره انبار :

ST-57663

زمان تحویل:

8 هفته

قیمت حدودی:

92,060,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

Description / توضیحات

Features

Cable sold separately
Temperature ranges
- 482 to 1472°F (2ML)
- 725 to 2912°F (2MH)
Optical resolution
- 150:1 (2ML)
- 300:1 (2MH)
1.6µm spectral range
10ms response time
0.1 to 1.1 emissivity
Programmable functional input
2 wire 4-20mA output
5 to 30VDC power supply
IP65 NEMA-4 rated

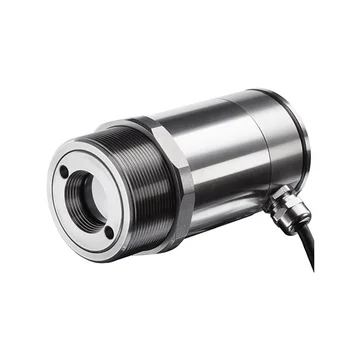

The Optris CSlaser 2M infrared temperature sensor features a short measuring wavelength for precise temperature measurement of metal, metal oxides, and ceramics. It has integrated dual laser aiming for accurate alignment and focal positioning of the sensor. A wide range of optics allows the CSlaser 2M to adapt to many different applications. The CSlaser 2M features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCSUSBK). Outputs include 2-wire 4-20mA, open collector alarm, and digital output. The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
