Features
- -58 to 1787°F temperature range
- Universal analog output
- 0.1 to 1.1 adjustable emissivity
- 8 to 14µm spectral range
- ±1% or ±3.6°F accuracy
- 9 or 6ms response time
- Available in 1, 3, 8 or 15m cable lengths
- 8-36VDC power supply
- 100mA max current draw
- IP65 NEMA-4 rated

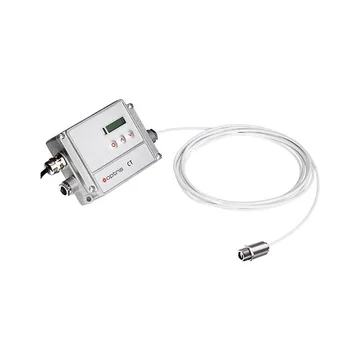

The Optris CTfast infrared temperature sensor has a rapid response time, making measurements in as little as 6ms. It can measure temperatures up to 1787°F, and function in ambient temperatures up to 248°F without additional cooling.
Selectable analog outputs and multiple digital interfaces offer high variability. Field selectable analog output options include 0/4-20mA, 0-5, and 0-10 V, and type K or J thermocouples. The Optris CTfast includes a programmable functional input for setting external emissivity, ambient temperature compensation, and reset of hold functions. It also features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug-in options.
The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
