Features
- 482 to 3992°F (250 to 2200°C) temperature ranges
- 150:1 or 300:1 optical resolution
- Measuring wavelength of 1 or 1.6μm
- 1ms response time
- 0.1 to 1.1 emissivity
- 100mA max current draw
- 8 to 36VDC power supply
- IP65 NEMA-4 front mountable
- At vacuum processes up to 10–3mbar

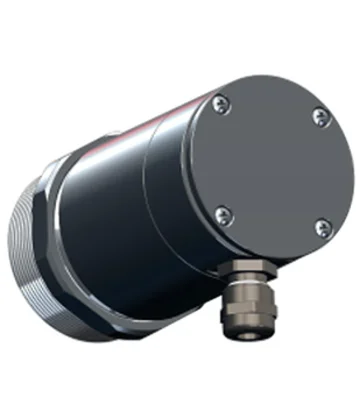

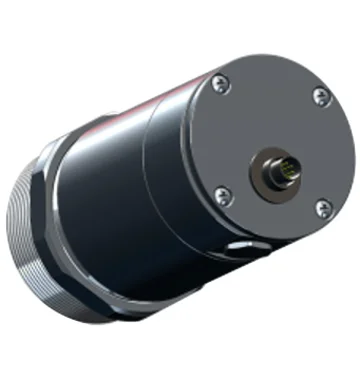

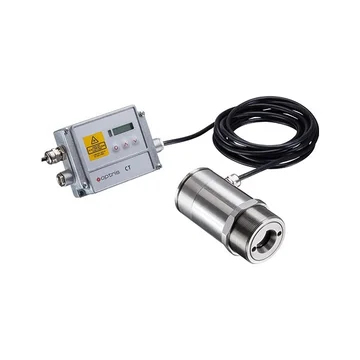

The Optris CTlaser 1M / 2M infrared temperature sensor is designed for measuring the temperature of metals, secondary metal processing, and ceramic materials. It has integrated dual laser aiming for accurate alignment and focal positioning of the sensor. The 1M / 2M is available in six different temperature ranges from 482 to 3992°F (250 to 2200°C), and can function in temperatures up to 185°F (85°C) without additional cooling.
Selectable analog outputs and multiple digital interfaces offer high variability. The Optris CTlaser 1M / 2M infrared thermometer features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCTUSBK). Field selectable analog output options include 0/4-20mA, 0-5 and 0-10 V, type K or J thermocouples, and alarm. Optional USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug-in options.
The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
