Optris CS LT Infrared Temperature Sensor

Name: Optris CS LT Infrared Temperature Sensor
Brand: Optris
Price: 158700000 IRR
Availability: InStock

برند :

Optris

شماره انبار :

ST-57655

زمان تحویل:

8 هفته

قیمت حدودی:

15,870,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

Description / توضیحات

Features

0 to 3.5VDC 32 to 662°F (0 to 350°C) default output
Change scale to anything within the full range
- -58 to 1886°F (-50 to 1030°C) temperature
- 0 to 10VDC
- Type K thermocouple
- Requires programming kit ACCSUSBK
±1.5% or ±2.7°F accuracy
±0.75% or ±33.4°F repeatability
15:1 optical resolution
8 to 14μm spectral range
5 to 30VDC power supply
14ms response time
IP 63 rated

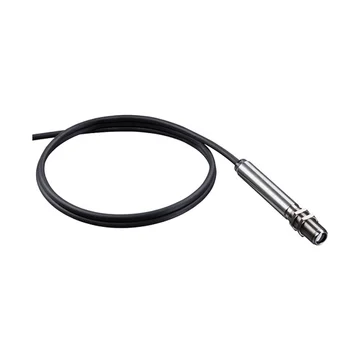

The Optris CS LT infrared temperature sensor is designed for temperature measurement in tight spaces. It can be employed in ambient temperatures up to 176°F without additional cooling. It features peak hold, valley hold, average, and extended hold functions with threshold and hysteresis. LED functions include alarm indication, automatic aiming support, a self-diagnostic function, and temperature indication. The Optris CS LT features signal processing with parameters that can be adjusted with Optris Compact Connect temperature analysis software. The software is necessary to document and analyze temperature measurement data and is available as a free download. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
