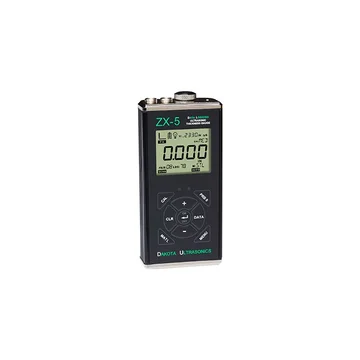

Dakota Ultrasonics ZX-5DL Thickness Gauge and Datalogger

Features

• 0.0120 to 0.7300 in/μs material velocity
• 0.025 to 36in (0.63 to 1219.2mm) thickness range

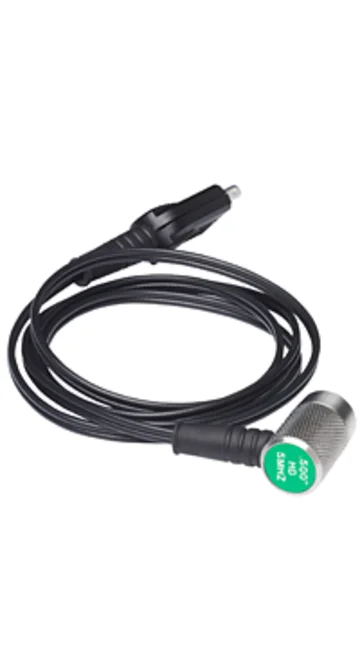

• Dual-element transducer (1-10MHz)
• 120MHz FPGA timing
• 150 volt square wave pulser
• 0.001in (0.01mm) resolution
• USB-C connectivity
• 32-megabit flash memory
• -22°F (-30°C) low-temperature LCD display
• IP65 protection rating
• 5-year limited warranty
• CE approved

The Dakota Ultrasonics ZX-5DL fixed-velocity thickness gauge and datalogger is part of the ZX series of thickness gauges offering a performance solution built to withstand the roughest industry conditions. The features included in the ZX Series offer a quality tool that will meet or exceed your application requirements. Dakota ZX-5DL has an on-board data logger that stores 10,000 readings in 40 files of 250 readings per file. The 5-year limited warranty indicates how Dakota feels about the reliability and durability of the ZX Series gauges. Applications for the Dakota Ultrasonics ZX-5 thickness gauge Corrosion & Pitting Tube & Pipe Tanks Boilers Glass
