Features
- ±0.01in (0.1mm) or ±0.001in (0.01mm) selectable resolution
- 0.0122 to 0.73in/µs (310 to 18,542m/sec) velocity
- 14 to 140°F (-10 to 60°C) operating temperature
- Pulse-Echo contact
- Steel 0.05in to 100ft (1.27mm to 30.5m)
- Composites 0.1 to 5in (2.54 to 127mm)
- Echo-Echo contact
- Steel 0.1in to 3ft (2.54mm to 91.44cm)
- Echo-Echo verify contact
- Steel 0.1 to 6in (2.54 to 152.4mm)
- 500kHz to 10MHz frequency range
- 2-year limited warranty

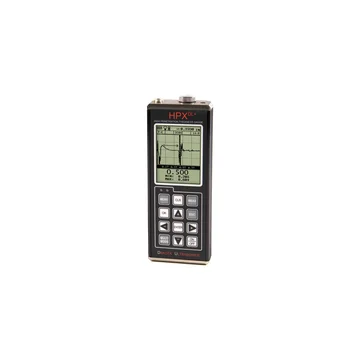

The Dakota Ultrasonics HPX DL+ thickness gauge is designed for use on materials that are difficult to penetrate sound due to the grain structure, overall thickness or lack of material consistency. With multiple high-voltage pulser options and filters tuned for lower frequency transducers (500kHz to 10MHz), the HPX offers a variety of features and tools to accommodate a wide range of material types and applications. Material types include fiberglass, carbon fiber, cast metals, rubber, high density polyethylene (HDPE), fiber-reinforced plastic (FRP), lead and all steels and aluminums. The HPX gauge's electronic platform is FPGA-driven for speed and accuracy, and the screen refresh rate of 25Hz contributes to its overall responsiveness. The HPX also offers a built-in data logger with both grid and sequential file format options, and the gauge is equipped with an internal 4GB SD memory card. The HPX features connectivity to a standard PC or Apple via USB-C, and the accompanying Windows PC or OSX reporting software is available as a free download. Dakota Ultrasonics HPX DL+ Thickness Gauge Applications Fiberglass sheets Pipes Storage tanks Aerospace composites Boat hulls Conveyor belts Composite plastics
