Features
- 100MHz DSP platform
- 1/8in VGA grayscale display (240 x 160 pixels)
- Screen Refresh rate of 25 Hz
- Manual or AGC gain
- Linear time dependent gain
- Measurement modes:
- Pulse-echo (flaws, pits)
- Echo-echo (thru-paint)
- Velocity Range:
- 0.0122 to 0.7300 inches/µs
- 309.88 to 18542 meters/sec
- Single and two point calibration option

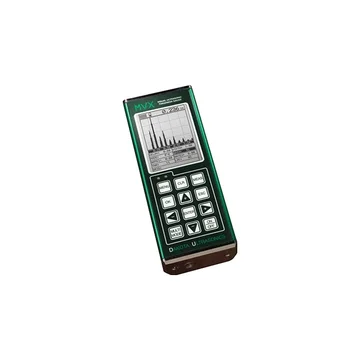

The Dakota Ultrasonics MVX Ultrasonic Thickness Gauge is a basic A-Scan thickness scope, with the ability to satisfy most advanced thickness applications. It offers the versatility of a scope based instrument. The MVX has a variety of display options including RF, rectified, B-Scan, and large digits. An alpha numeric data logging format with 4Gb internal SD memory, stands to offer far more storage than ever needed. The custom setup features allows 64 definable setups per file, for as many files as is needed. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability. The DakView java-based PC or MAC OSX software makes this MVX a complete kit. Applications include: Corrosion & pitting Tube & pipe Tanks Boilers Glass
