Features
- 0.025 to 36in (0.63 to 1219.2mm) thickness range

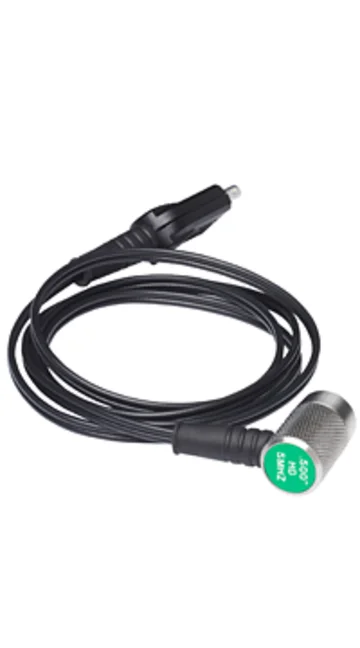

- Dual-element transducers (1-10MHz options)
- 8 preset and 2 programmable velocity options
- 120MHz FPGA timing
- 150 volt square wave pulser
- -22°F (-30°C) operating temperature
- Adjustable material velocity
- IP65 protection rating
- 5-year limited warranty

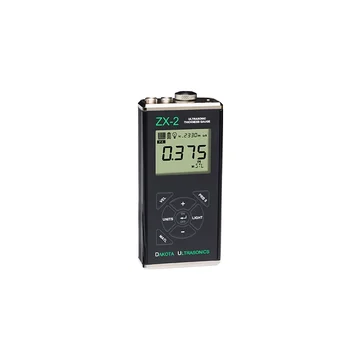

The Dakota ZX-2 fixed-velocity ultrasonic thickness gauge is a basic fixed-velocity gauge that requires no special training to operate. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types. Dakota ZX-2 Ultrasonic Thickness Gauge's selectable velocity options Steel 4340 0.2330in (5918mm) Stainless 303 0.2230in (5664mm) Aluminum 2024 0.2510in (6375mm) Cast Iron 0.1800in (4572mm) Plexiglass 0.1060in (2692mm) PVC 0.0940in (2388mm) Polystyrene 0.0920in (2337mm) Polyurethane 0.0700in (1778mm) Custom Custom The ZX-2 was designed and built to withstand the roughest industry conditions, and is backed by a 5-year limited warranty. Custom transducers are available for special applications
