Features
- 100MHz DSP platform
- USB-C connectivity
- Adjustable 200 volt pulser: 100, 150 & 200 volts
- Up to 250 Hz PRF
- Variable pulse width (spike, thin & wide)
- 110dB gain range
- Time dependent gain (TDG)

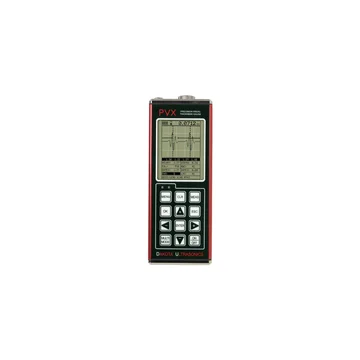

The Dakota Ultrasonics PVX v2.0 Thickness Gauge is used in the aerospace, automotive, stamping and precision machining industries. The versatility and transducer options offer a measuring range from very thin to extremely thick, with exceptional resolution. There's a variety of features and tools to accommodate a number of material types and applications. The electronic platform is FPGA driven for speed and accuracy. The screen refresh rate at 25 Hz (b&w) and 60 Hz (color), contributes to the overall responsiveness of the gauges. The built-in data logger has two file format options, grid or sequential, and is equipped with an internal 4 GB SD card for memory. Connectivity to a standard PC or Mac via USB-C, and used in conjunction with our Windows PC or MAC OSX reporting software available for download, at no charge, on our website. Other features of the Dakota Ultrasonics PVX v2.0 thickness gauge include hardware AGC gain control for multiple echo and thru-paint measurements, multiple calibration options including one-point, two-point or selection from a material list and 16 factory and 48 user-defined setups. The PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs. The PVX thickness gauge comes complete with Windows® PC software for transferring data to and from a PC, multiple language support and a 2-year limited warranty.
