Description
Modules easily slide into chassis slots
Up to 3 chassis can be interconnected
Four chassis sizes are available to choose from
All power supplies have an LED that indicates proper supply power
Supplies have a hold-up time

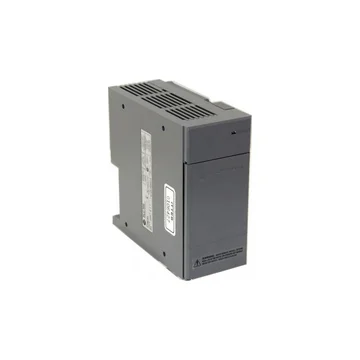

Model 1746-P4
Line voltage
85...132/170...250V ac
47...63 Hz
Typical line power requirement 150VA
Inrush current, max 45 A
Internal current capacity
10.0 A at 5V dc
2.88 A at 24V dc(1)
Fuse protection(2)
Fuse is soldered in place.
24V dc user-power current capacity 1 A(1)
24V dc user-power voltage range
20.4...27.6V dc
User-supplied overcurrent protection(3), max
15 A
Temperature, ambient operating
0...60 ?C (32...140 ?F)
No derating
Isolation(4)
2600V dc for 1 s
CPU hold-up time(5)
20 ms (full load)
3000 ms (no load)
Certification (when product is marked)
UL Listed Industrial Control Equipment
CSA Certified Process Control Equipment for Class 1, Division 2,
Groups A, B, C, D Hazardous Locations
CE(6)
European Union 89/336/EEC EMC Directive, compliant with:
EN 50082-2 Industrial Immunity
EN50081-2 Industrial Emissions
European Union 73/23/EEC LVD Directive, compliant with:
EN61131-2 Programmable Controllers
C-Tick
Australian Radiocommunications Act, compliant with:
AS/NZS 2064 Industrial Emissions
The combination of all output power (5V backplane, 24V backplane, and 24V user source) cannot exceed 70 W.
Power supply fuse is intended to guard against fire hazard due to short-circuit conditions. This fuse may not protect the supply from miswiring or excessive transient in the power line.
Use time-delay type overcurrent protection in all ungrounded conductors.
Isolation is between input terminals and backplane.
CPU hold-up time is for 0V unless specified. Hold-up time is dependent on power supply loading.
