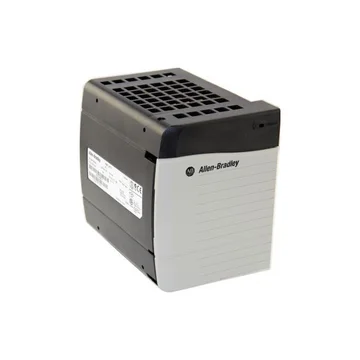

1756-PA72/C | Allen Bradley ControlLogix Standard Power Supply

Name: 1756-PA72/C | Allen Bradley ControlLogix Standard Power Supply
Brand: Allen-Bradley
Price: 1001800000 IRR
Availability: InStock

برند :

Allen-Bradley

پارت نامبر :

1756-PA72/C

شماره انبار :

ST-41452

زمان تحویل:

5 هفته

قیمت حدودی:

100,180,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	1756-PA72/C
Fusing	Non-replaceable fuse is soldered in place(5)
Wire size	2.5 mm? (14 AWG) solid or stranded copper wire rated at 90?C (194?F), or greater, 1.2 mm (3/64 in.) insulation max
Dimensions	14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)
Wire category	1-on power ports(6)
Weight, approx	0.95 kg (2.10 lb)
Module location	Left side of 1756 chassis
Input power, max	100VA/100 W
Output power, max	75 W @ 0...60?C (32...140?)?
Power consumption	25 W @ 0...60?C (32...140?)
Power dissipation	85.3 BTU/hr
Input voltage, nom	120V/240V AC
Inrush current, max	20 A
Input voltage range?	85...265V AC
Chassis compatibility	Series A, Series B
Enclosure type rating	None (open-style)
Input frequency range	47...63 Hz
Transformer load, max	100VA
Conductor screw torque	0.8 N m (7 lb in)
Current capacity at 24V DC	2.8 A
Current capacity at 1.2V DC	1.5 A
Current capacity at 3.3V DC	4 A
Current capacity at 5.1V DC	10 A
Overcurrent protection, max	User-supplied 15 A(4)
North American temperature code	T4

Description / توضیحات

Technical Specifications Hold-up time?: 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz Isolation voltage: 250V (continuous), reinforced insulation type Type tested @ 3500V DC for 60 s, power input-to-backplane approx NOTE: UL certification for 120/240V AC, 50/60 Hz nominal. Rockwell Automation specified 85 265V AC, 47 63 Hz. The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 75 W. The hold-up time is the time between input voltage removal and DC power failure. Use time-delay type overcurrent protection in all ungrounded conductors. This fuse is intended to guard against fire hazard due to short circuit conditions. Use this conductor category information for planning conductor routing as described in the system level installation manual.
