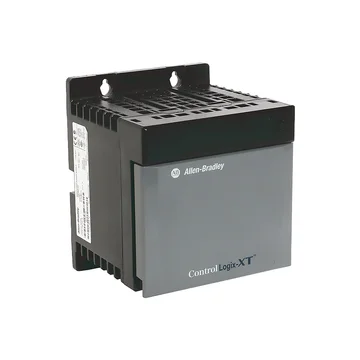

Model 1756-PA75R Input voltage range 85 265V AC? Input voltage 120V/240V AC, 50/60 Hz Input frequency range 47 63 Hz Input power, max 120VA 115 W Output power, max 75 W @ 0 60 ?C (32 140 ?F) Inrush current, max 20 A Current capacity @ 1.2V 1.5 A Current capacity @ 3.3V 4 A Current capacity @ 5.1V 13 A Current capacity @ 24V 2.8 A Annunciator power 240V AC 50/60 Hz, 240V DC, 50 mA, resistive only Isolation voltage 250V (continuous), Reinforced Insulation Type, Power Input to Backplane, Power Input to Annunciator, Annunciator to Backplane Type tested at 3250V DC for 60 s Dimensions (HxWxD), approx 17.5 x 14.5 x 13.7 cm (6.9 x 5.7 x 5.4 in.) Weight, approx 1.45 kg (3.2 lb) Wire size Power: 2.5 mm? (14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation max Annunciator: 0.25 2.5 mm? (22 14 AWG) solid or stranded copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation max Wire category? 3 - on annunciator ports 1 - on power ports 3 - on 1756-CPR2 connections Pilot duty rating Annunciator - not rated Conductor screw torque 0.79 N m (7 lb in) North American temperature code T3C ATEX temperature code N/A IEC temperature code N/A Enclosure type rating None (open-style) UL certification for 120/240V AC, 50/60 Hz nominal. Rockwell Automation specified 85 265V AC, 47 63 Hz. Use this conductor category information to plan conductor routing. See the Industrial Automation Wiring and Grounding Guidelines.
