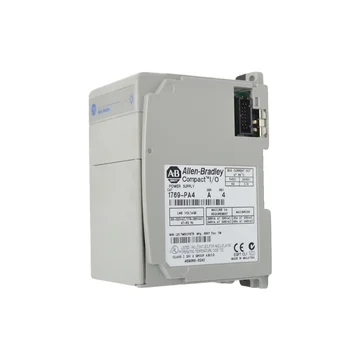

Model 1769-PA4 Input voltage range 85 132V AC or 170 265V AC, switch selectable Input frequency range 47 63 Hz Power supply distance rating¹ 8 (8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules) Operating altitude 2000 m (6562 ft) Isolation voltage 265V (continuous), Reinforced Insulation Type (IEC Class 1 grounding required) Routine tested at 2596V DC for 1s, AC Power Input to System Power consumption 200 VA @ 120V AC; 240 VA @ 240V AC Power dissipation 18 W @ 60°C Current capacity at 5V 4.0 A Current capacity at 24V 2.0 A Inrush current, max 25 A @ 132V AC Fuse type Wickmann 19195-3.15A Littelfuse 02183.15MXP Dimensions (HxWxD), approx. 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) Wiring category² 1 on power ports Wire size 2.5 mm² (14 AWG) solid copper wire rated at 90°C (194°F), or greater, 1.2 mm (3/64 in.) insulation max North American temp code T3C IEC temp code N/A Enclosure type rating None (open style) Note: When configuring your system using a MicroLogix 1500 controller, only one expansion cable, one expansion power supply and a total of eight I/O modules may be used in a maximum of two banks of I/O modules. The expansion power supply cannot be directly connected to the MicroLogix 1500 controller. Use this Conductor Category information for planning conductor routing.
