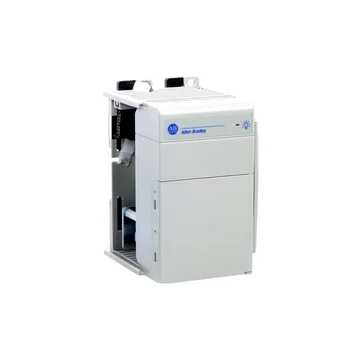

Model 1769-PA2 Input voltage range 85 265V AC Input frequency range 47 63 Hz Power supply distance rating? 8 (8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules) Operating altitude 2000 m (6562 ft) Isolation voltage 265V (continuous), Reinforced Insulation Type (IEC Class 1 grounding required) Routine tested at 2596V DC for 1s, AC Power Input to System and AC Power Input to 24V DC User Power Power consumption 100 VA @ 120V AC 130 VA @ 240V AC Power dissipation 8 W @ 60 ?C Current capacity at 5V 2.0 A Current capacity at 24V 0.8 A Inrush current, max 25 A @ 132V AC Fuse type Wickmann 19195-3.15A Littelfuse 02183.15MXP Dimensions (HxWxD), approx. 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) Shipping weight, approx 525 g (1.16 lb) Wiring category? 1 on power ports Wire size 2.5 mm? (14 AWG) solid copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation max North American temp code T3C IEC temp code N/A Enclosure type rating None (open style) Note: When configuring your system using a MicroLogix 1500 controller, only one expansion cable, one expansion power supply and a total of eight I/O modules may be used in a maximum of two banks of I/O modules. The expansion power supply cannot be directly connected to the MicroLogix 1500 controller. Use this Conductor Category information for planning conductor routing.
