Features
- 100mV/in/sec sensitivity (±5%, 25°C)
- PZT shear sensing element
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±10%: 2 to 6,000Hz
- ±3 dB: 1 to 12,000Hz
- 30kHz resonance frequency
- 200Ω max output impedance
- Hermetic sealing
- MIL-C-5015 2-pin connector
- IP68 protection rating

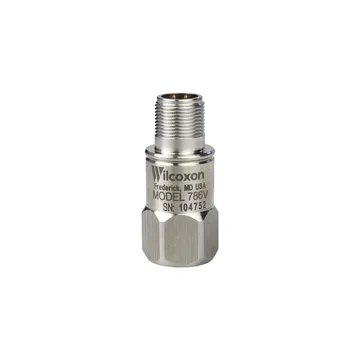

The Wilcoxon Sensing Technologies 786V velocity sensor is a compact design that features 100mV/ips sensitivity with ±5% tolerance and a wider frequency range than traditional velocity sensors (1 to 12,000Hz). It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting, a SF6 mounting stud, and has a MIL-C-5015 2-pin output connector.
The 786V is API 670 compliant and is manufactured in ISO 9001 facility.
