Features
- Dynamic vibration (IEPE) sensor output
- 100mV/g sensitivity
- ±15% sensitivity tolerance
- 0.4 to 12,000Hz frequency response
- J88C integral cable
- PZT, shear sensing element design
- BNC connector
- 80g peak FS acceleration range
- 30kHz resonance frequency
- 316L stainless steel construction
- Two-pole 40 lbf magnet included

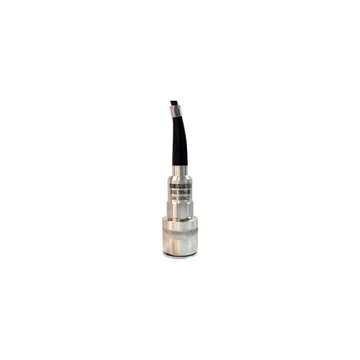

The Wilcoxon Sensing Technologies 780FM-2-J88C integral cable accelerometer is designed for walkaround monitoring programs. It features a magnetic mounting base and a top exit, 6-foot coiled integral cable with BNC connector for use with portable vibration data collectors.
The 780FM-2-J88C is designed for long-term, reliable use, constructed with 316L stainless steel, and is hermetically sealed and corrosion resistant. It features a 1/4-28 UNF tapped hole and a two-pole 40 lbf magnet for mounting (included), and has a BNC connector. The 780FM-2-J88C is case isolated, and has 100mV/g sensitivity and ±15% sensitivity tolerance.
The 780FM-2-J88C is manufactured in an ISO 9001 facility.
