Features
- Peak acceleration range:

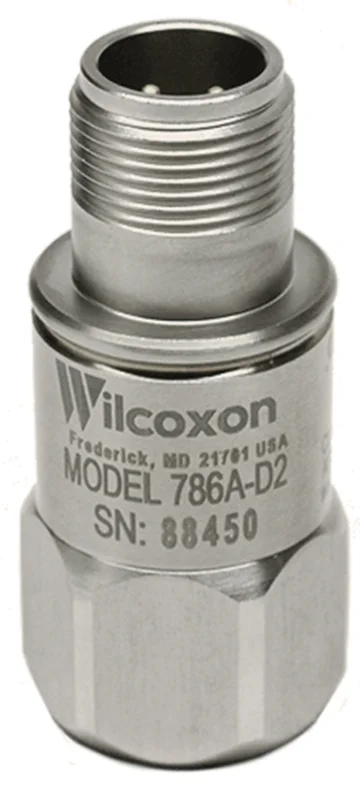

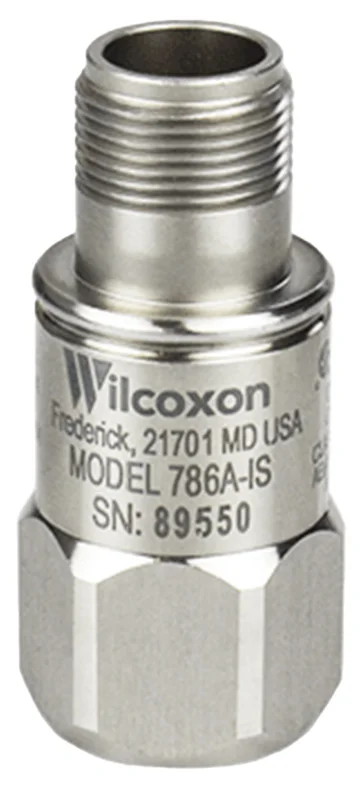

- 786A, 786A-D2, 786A-IS, 786A-M12, 786A-M12-D2, 786A-M12-IS: 80g peak

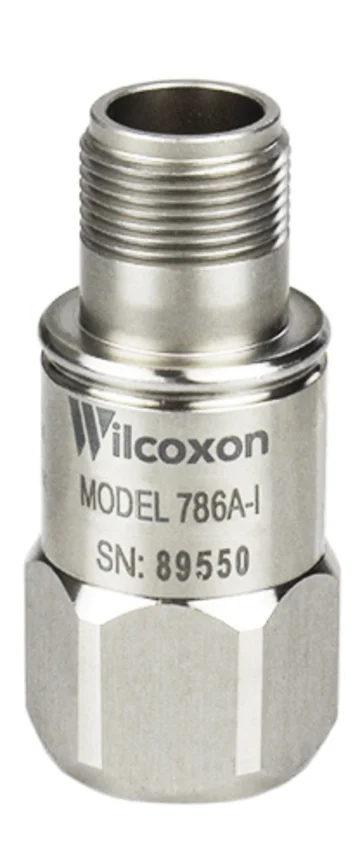

- 786A-I: 500g peak
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- Hermetic sealing
- PZT ceramic / shear sensing element
- Connector:
- 786A, 786A-D2, 786A-I, 786A-IS: MIL-C-5015

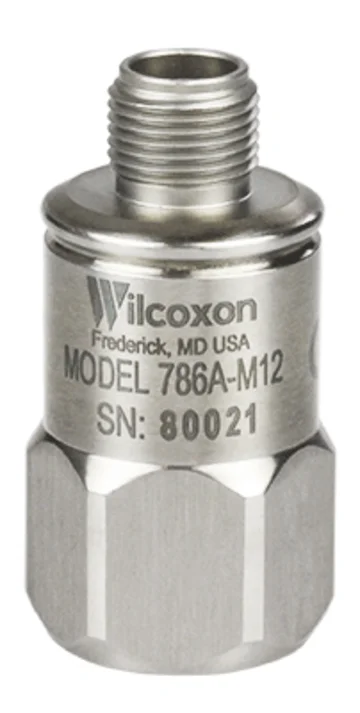

- 786A-M12, 786A-M12-D2, 786A-M12-IS: M12 style, 4- or 5-pin

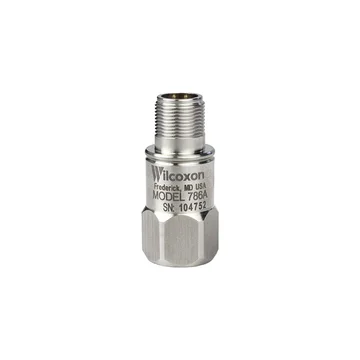

The Wilcoxon Sensing Technologies 786A series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 786A has a MTBF of 25 years, is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.
The 786A is API 670 compliant and is manufactured in an ISO 9001 facility.
