Features
- Dynamic vibration (IEPE) sensor output
- 10g peak acceleration range
- Frequency response:
- ±5%: 0.7 to 5,000Hz
- ±10%: 0.5 to 9,000Hz
- ±3 dB: 0.2 to 14,000Hz
- 30kHz resonance frequency
- 300Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- Mounting:
- 786-500: 1/4-28 UNF tapped hole
- 786-500-D2: 1/4-28 captive hex head screw, 0.046” diameter safety wire hole
- Connector:
- 786-500: R6 type
- 786-500-D2: output 2 pin, MIL-C-5015 style, mating R6D2

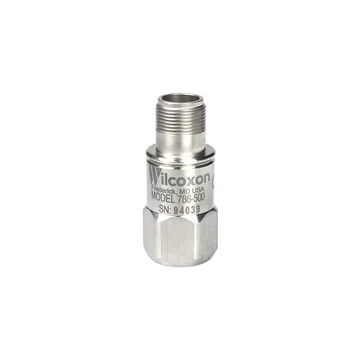

The Wilcoxon Sensing Technologies 786-500 series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, features high sensitivity and clear signals at low vibration levels, and is ideal for slow-speed machinery.

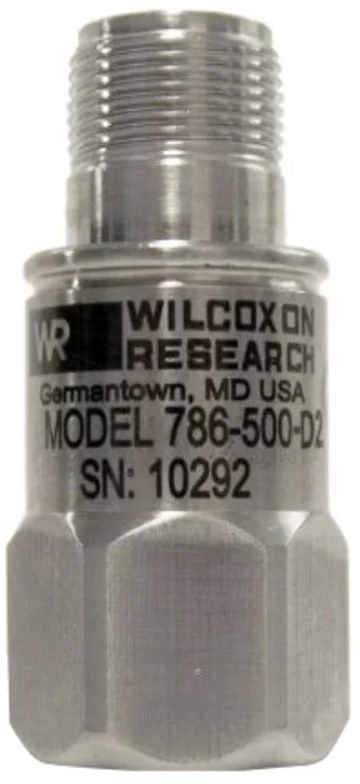

The 786-500 has a 500mV/g, ±5% sensitivity tolerance, and is case isolated and internally shielded. The 786-500 model features a 1/4-28 UNF tapped hole for mounting and an R6 type mating connector. The 786-500-D2 model has a 1/4-28 captive hex head screw and 0.046in diameter safety wire hole for mounting, a 2 pin, MIL-C-5015 style output connector, an R6D2 mating connector, and is Class I Div 2 certified, non-incendive.
The 786-500 is manufactured in an ISO 9001 facility.
