Features
- 1000MΩ minimum insulation resistance
- When measured at 500VDC at room temperature
- 2.2 second response time for grounded thermocouples
- 3.2 seconds for ungrounded
- Spring-loaded sensor mounting styles available
- Hazardous location product approvals optional
- Electrical continuity of each conductor pair is verified

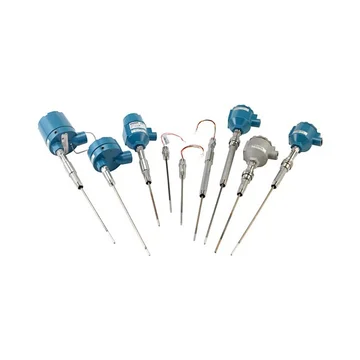

The Rosemount 214C thermocouples are designed to provide flexible and reliable temperature measurements in process monitoring and control environments. Choose from three thermocouple types to best suit your application needs:
Type J is one of the most common thermocouples (iron & constantan conductors)
Type K is used for high temperature applications (Chromel & Alumel conductors)
Type T is used for low temperature applications (copper & constantan conductors)
Rosemount 214C temperature sensors are available with immersion lengths from 2 to 78-1/2 inches (50 to 2000mm) in 1/4-inch (5mm) increments. All sensor styles and lengths have a standard 1/4-inch (6mm) nominal diameter. Multiple options for connection heads, accuracy, mounting styles, extensions and other factors are also available.
The Rosemount 214C temperature sensors can be combined with process-ready or hand-tight transmitter, sensor, and/or thermowell assemblies to deliver a complete temperature solution.
