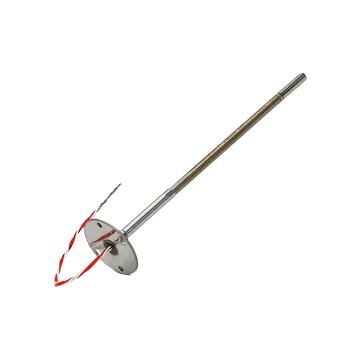

0185L005N1T0200N0490 | Rosemount 0185 Thermocouple

Name: 0185L005N1T0200N0490 | Rosemount 0185 Thermocouple
Brand: Rosemount
Price: 845000000 IRR
Availability: InStock

برند :

Rosemount

پارت نامبر :

0185L005N1T0200N0490

شماره انبار :

ST-17910

زمان تحویل:

12 هفته

قیمت حدودی:

84,500,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Brand	Rosemount
Model	0185 Thermocouple
Material	300 series stainless steel
Condition	New & Original in Factory Packing
Lead Wires	PTFE insulated, 0.52 mm2 (20 AWG) stranded thermocouple wire, color coded per IEC 584
T Extension	DIN Standard 12 1.5
IP rating(1)	65
Head-cnnection	M24 x 1.5
05N1 Sensor type	Thermocouple, Type N, dual element, isolated, ungrounded
Factory Warranty	12 Months
L Connection head	TZ–A/BL (BUZH) aluminum w/cable gland
Temperature range	–40 to 1000 °C (–40 to 1832 °F)
Conduit/cable entry	M20 x 1.5
Instrument connection	M18 x 1.5
Insulation Resistance	1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperature
Certifications/Approvals	Hazardous location, see full specs for complete list of certifications

Description / توضیحات

Specifications Ordering Information Model 0185 Thermocouple (IEC 584 Class 1) without thermowell Sensor lead wire termination 0 Flying leads (no springs on DIN plate) Extension length (N) in millimeters 0200 Thermowell material N No thermowell Sensor length (L) in millimeters 0490 To maintain IP rating, use a suitable cable gland on the conduit connection thread. All threads must be sealed with a suitable sealing tape.
