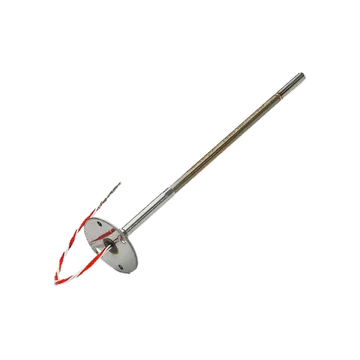

Model 0185 Thermocouple (IEC 584 Class 1) without thermowell
Sensor lead wire termination 3 Spring loaded adapter (1/2-in. NPT)
Extension length (N) in millimeters 0070 70 mm
Thermowell material N No thermowell
Sensor length (L) in millimeters 0800 800 mm
Product certifications(2) I1 ATEX Intrinsic Safety Approval
Assemble to option XA(3) Assemble sensor to specific temperature transmitter (PTFE paste)
To maintain IP rating, use a suitable cable gland on the conduit connection thread. All threads must be sealed with a suitable sealing tape.
Refer to Table 7 on page 29 for limitation on options available with approvals.
If ordering Assemble To Option XA with a transmitter, specify the same option on the transmitter model number.
