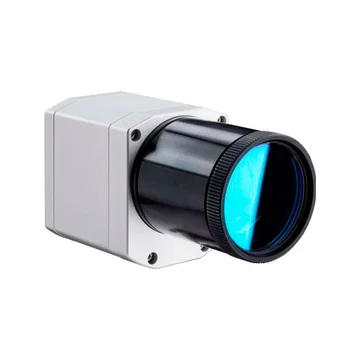

Optris PI 08M Infrared Camera

Features

• 26° x 16° FOV, f = 0.98in
• ±1% accuracy
• 800 nm spectral range
• 764 x 480 px optical resolution
• Switch between 80 or 27Hz measurement speed
• Temperature ranges up to 3452°F
• 75mK temperature resolution

The Optris PI 80m infrared camera was developed with a spectral range of 800 nm to decrease measurement errors resulting from unknown or changing emissivities. Due to the spectral range as well as the continuous measurement range from 1067° to 3452°F, this compact infrared camera is suited for NIR and CO2 laser processing applications. The Optris PI 80m infrared camera comes with thermography software PIX connect, allowing real-time temperature analyzation and remote control of the camera. Also, individual alarm levels with defined visual or acoustic alarm signals can be set.
