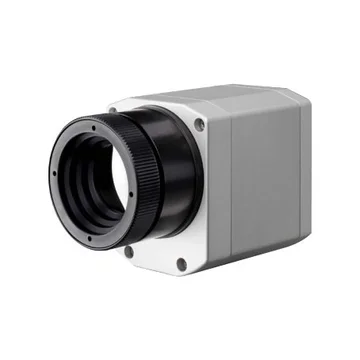

Optris PI 400i Infrared Camera

Features

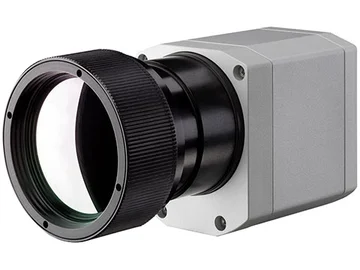

• Available lenses
  • 18° x 14° FOV, f = 0.7in
  • 29° x 22° FOV, f = 0.5in
  • 53° x 38° FOV, f = 0.3in
  • 80° x 54° FOV, f = 0.2in
• ±3.6°F or ±2% accuracy
• 8 to 14µm spectral range
• 382 x 288px optical resolution
• Switch between 80 or 27Hz measurement speed
• Temperature ranges up to 2732°F
• 75mK temperature resolution

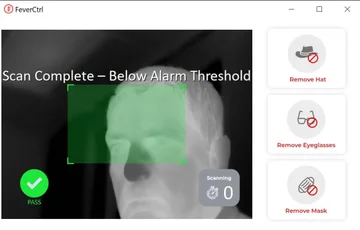

The Optris PI 400i infrared camera is designed to detect the slightest temperature differences with a thermal sensitivity of 75mK, providing real time thermographic images in high speed. Its high sensitivity makes the PI 400i well suited for quality control or medical prevention applications. The Optris PI 400i infrared camera comes with thermography software PIX connect, allowing real-time temperature analyzation and remote control of the camera. Also, individual alarm levels with defined visual or acoustic alarm signals can be set.
