Features
- Combustion air temp up to 930°F
- Using adequate NiCrNi probes
- ±40 inH2O (100 hPa) differential or stack gas pressure
- Gas temp measurement depends on probe accessory
- Up to 1200°F with stainless steel
- Up to 2012°F with Inconel
- Up to 3090°F with ceramic
- User settable O2 referencing (normalization)
- Analog 4-20mA, 8-channel outputs & 4-channel inputs
- Universal AUX input 0-10V, 4-20mA, Type-K, or RS485
- CTM 30, CTM 34 & ASTM D6522 compliance

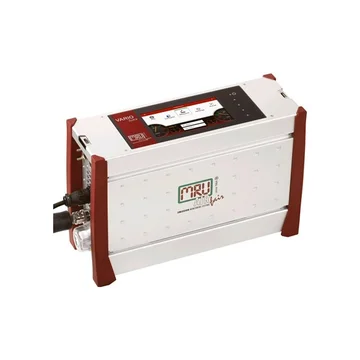

The MRU Vario Luxx emission analyzer uses infrared (3-gas) and electrochemical cells (6-gas) for precise measurement. It is most suitable for low NOx measurements and
other toxic gas applications, but can also be used for gas engines, turbines, large boilers, furnaces, etc. Perform tuning, trouble-shooting, compliance reporting, or
long-term monitoring of nearly any combustion application. This analyzer meets MCP Directive 2015/2193 for medium combustion plants with rated power less than 50MW.
The Vario Luxx has automatic features to make it easy to use:
Internal diagnostics
Zeroing using a 3-way solenoid valve
Data logging
While not automatic, the graphical data visualization and direct to csv or pdf file reporting are very intuitive features; transfer data to a PC via Ethernet or USB.
