Features
- Biogas pressure measurement of 0 to +/‐300mbar
- O2 measurement of 0 to 25%
- CH4 measurement of 0 to 100%
- CO2 measurement of 0 to 100%
- Optional gas measurement for H2S, CO, NO, NO2
- 0 to 2,000ppm (5,000ppm overload) H2S
- 0 to 4,000ppm (20,000ppm overload) CO
- 0 to 1,000ppm (5,000ppm overload) NO
- 0 to 200ppm (1,000ppm overload) NO2
- Dual Bluetooth (Biogas and Engine Exhaust models only)
- Internal gas flow monitoring / alarm
- IRDA interface for high speed infrared thermal printer (sold seperately)
- Mini‐USB interface for cable data transfer to PC
- WLAN Interface
- Integrated SD card reader for additional data storage and data transfer to PC
- 4in TFT display with LED backlit
- High energy Li-Ion battery (up to 15 hours operation time)

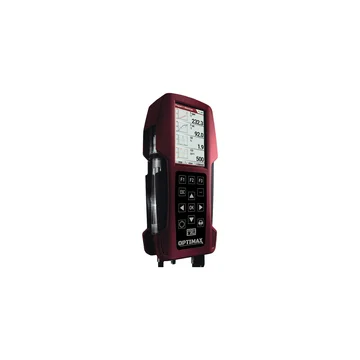

The MRU OPTIMAX Biogas Analyzer can simultaneously measures of up to 7 gas components. The biogas measurements include O2, H2S, CH4 and CO2 (infrared for CO2/CH4). The emissions measurements include O2, CO, NO, NO2 and CO2.
The biogas and engine exhaust models includes all combustion calculations and automatic measurement with user-specific adjustable determination of average value storing on SD card. These models also add the following accessories:
Gas sampling probe for exhaust gas emission monitoring with 9ft Viton hose
12in probe tube
Heat deflector
Transport case
The landfill model provides gas flow velocity measurement capable using Pitot tube (not included). It includes a US landfill gas probe with K-Type t/c input with 6in insertion cable, Type K thermocouple with 6in insertion cable, and transport case. All landfill models include a spare part set (O-rings, filter, and condensate show glass).
Landfill models with H2S gas measurement option also include the following:
HC "sniffer" for gas leakage detection with 1.5 meter cable and swan neck
AUX universal auxiliary port - connection for external gas sniffer
Auto data logging function
