Features
- O2 sensor 0 to 25% included
- Up to 5 electrochemical sensor configurations
- Gas temperature measurement up to 2,012°F
- Condensate separator with PTFE (Teflon) coated filter
- Air purging pump for CO-sensor protection
- Built-in speed printer with easy paper loading
- Internal data storage for up to 16.000 measurements
- Compact and robust transport case

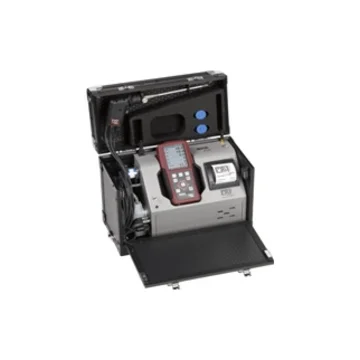

The MRU NOVA Plus Emission Analyzer can simultaneously measure up to eight gas components. Its built to meet the most stringent requirements. The NOVA Plus provides fast accurate combustion analysis of all gas, oil and solid fuel. It's also suitable for CHP's (co-generation heat and power engines).
The NOVA Plus Emission Analyzer is built with a robust metal enclosure mounted inside an aluminum framed case. Its low weight and size make it easy to transport. The O2 long life sensor has an expected life time of 4-5 years. The NOVA Plus is provided with a built-in printer with easy paper loading. The units also measure gas/air temperature, differential pressure and stack draft.
Measuring ranges include:
CO; 0 to 4,000 ppm
CO2; single NDIR 0 to 20%, tripple NDIR 0...3% up to 30%
O2; 0 to 21 Vol-% abs.
NO; 0 to 1,000 ppm
NO2; 0 to 200 ppm
NO(x); True NOx using NO and NO2
SO2; 0 to 2,000 ppm
H2S; 0 to 200 ppm
C3H8; tripple NDIR Bench, 0…..2,000ppm up to 5,000 ppm
CH4; tripple NDIR Bench, 0…..10,000ppm up to 3%
Fluegas temperature; less than/equal 1,200°F (650°C), less than/equal 2,000°F (1,100°C)
The NOVAplus Analyzer Kit #1 includes:
Remote control unit (63860)
Industrial probe (63981) with 9' sampling line and 12" exchangeable probe tube
CO measurement (63988) (0 to 4,000ppm / 10,000ppm)
NO measurement 63937 (0 to 1,000ppm / 5,000ppm)
NO2 measurement (64111) (0 to 200ppm / 1,000ppm) NO and NO2 needed for true Nox
CO protection (65522)
MRU Online View PC software (63006B)
The NOVAplus Analyzer Kit #2 includes:
Remote control unit (63860)
Industrial probe (63981) with 9' sampling line and 12" exchangeable probe tube
CO measurement (63988) (0 to 4,000ppm / 10,000ppm)
NO measurement 63937 (0 to 1,000ppm / 5,000ppm)
NO2 measurement (64111) (0 to 200ppm / 1,000ppm) NO and NO2 needed for true Nox
CO protection (65522)
MRU Online View PC software (63006B)
Peltier gas cooler (63866)
The NOVAplus Analyzer Kit #3 includes:
Remote control unit (63860)
Industrial probe (63981) with 9' sampling line and 12" exchangeable probe tube
CO measurement (63988) (0 to 4,000ppm / 10,000ppm)
NO measurement 63937 (0 to 1,000ppm / 5,000ppm)
NO2 measurement (64111) (0 to 200ppm / 1,000ppm) NO and NO2 needed for true Nox
SO2 measurement # 63990 (0…2,000ppm / 5,000ppm)
CO protection (65522)
MRU Online View PC software (63006B)
The NOVAplus Analyzer Kit #4 includes:
Remote control unit (63860)
Industrial probe (63981) with 9' sampling line and 12" exchangeable probe tube
CO measurement (63988) (0 to 4,000ppm / 10,000ppm)
NO measurement 63937 (0 to 1,000ppm / 5,000ppm)
NO2 measurement (64111) (0 to 200ppm / 1,000ppm) NO and NO2 needed for true Nox
SO2 measurement # 63990 (0…2,000ppm / 5,000ppm)
CO protection (65522)
MRU Online View PC software (63006B)
Peltier gas cooler (63866)
