Features
- 0.5 to 160GPM (water) or 6.1 to 33 SCFM (air)
- 5 inch (127mm) scale
- ±3% full scale accuracy
- 10:1 turndown
- 0.5% repeatability
- 200°F max temp (316L SS Fittings)
- 200 psig max pressure (316L SS Fittings)
- 125/150 psig (PVC Fittings)
- 33 to 125°F (1 to 52°C) ambient temperature

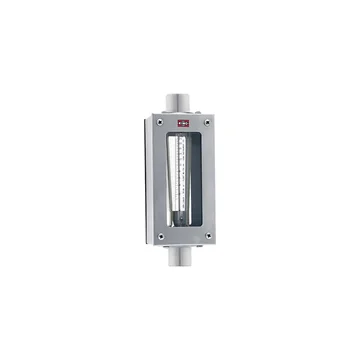

The King Instruments 7310 rotameter features an economical stainless steel case with a molded polysulfone metering tube. The internal components are available in 316L stainless steel, Teflon, Polysulfone, or Hastelloy C-276. O-rings are available in Viton, Buna N, EPR, and Kalrez. An optional latching reed switch alarm is also available.
