Features
- Quality 316L stainless steel construction
- Wide range of max flow options
- 33GPH to 450GPM (Water)
- 4.0 SCFM to 100 SCFM (Air)
- 120mm, direct reading, detachable scale
- ±3% full scale accuracy
- 10:1 to 12-1/2:1 turndown (unless otherwise indicated)
- 1% repeatability
- 33 to 125°F (1 to 52°C) max ambient temp
- Max pressure
- 1500psi (NPT Fittings)
- 1000psi (SS Flange)

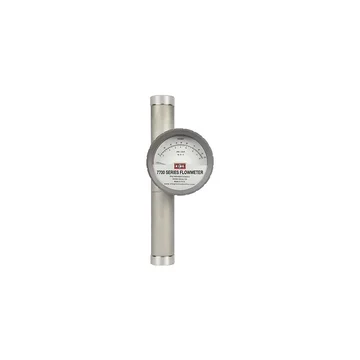

The stainless steel King Instrument 7710 series rotameter utilizes a float and tapered tube design. As a result, the 7710 series rotameters have a longer and more linear scales as well as better pointer stability and 40% greater accuracy than competitively priced products.
The King Instrument 7710 series rotameter is housed in 316L Stainless Steel. Complete with a 120mm scale, the 7710 series rotameter can be used in high pressure systems up to 1500psi and high temperature applications up to 350°F.
Options Available to the King Instrument 7710 Series Rotameter
Additional flange connections
Additional O-ring materials for chemical compatibility or higher temperatures: Maximum temperature of EPR: 225°F (107°C)Maximum temperature of Buna-N: 275°F (135°C)Maximum temperature of Viton: 350°F (199°C)Maximum temperature of Kalrez: 400°F (204°C)
4-20mA transmitter
One or two alarms
Alarm Options – Inductive Slot Sensor
Like inductive ring sensors, slot sensors are 2-wire, DC, low-current devices, and are designed to be used with a remote intrinsic safety barrier/switch isolator. Single or dual slot sensors are available for the King Instrument 7700 series rotameter.
