Features
- 0.22 to 132GPM water
- 0.9 to 350 SCFM Air
- 250mm Scale
- ±2% of full scale flow accuracy
- 0.5% repeatability
- 316L SS Fittings 200°F max temperature
- PVC Fittings 115°F max temperature
- 10:1 to 12.5:1 turndown

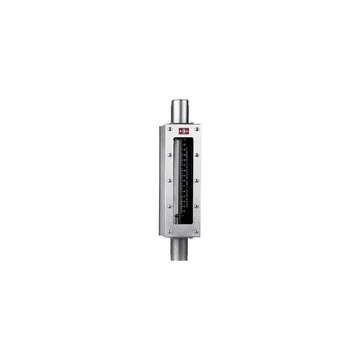

The King Instrument 7910 series borosilicate glass metering tube offers 70 flow ranges in 7 tube sizes, with a 250mm scale glass tube and 304 stainless steel case. The dual port connections (both horizontal and vertical on each end) allow for a variety of installation options.
King Instrument 7910 series rotameters have a fully enclosed borosilicate glass metering tube with a 250mm scale. In-line 316L fittings and internals or PVC fittings with Hastelloy C-276 internals make the 7910 series rotameter suitable for a variety of general industrial applications.
Alarm Option – Latching Reed Switch
The switch is reed type and uses a biasing magnet to create a latching feature. The switch is classified as a simple apparatus by UL, FM, etc. and may be suitable for hazardous use when connected to an intrinsic safety barrier. Check your local electrical code for wiring specifications.
