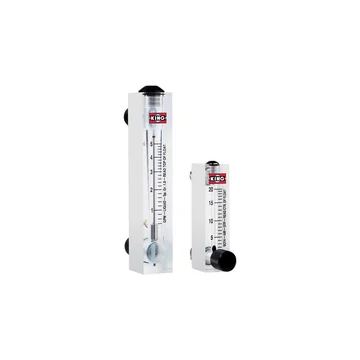

King Instrument 7520 / 7530 Series Rotameter

برند :

King Instrument

شماره انبار :

ST-56481

زمان تحویل:

8 هفته

قیمت حدودی:

9,260,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده


یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

Description / توضیحات


Features

  • Optional control valve
    • King 7520 (no valve)
    • King 7530 (with valve)
  • Flow capacity
    • 7GPH to 20GPM (water)
    • 2.6 SCFH to 60 SCFM (air)
  • Maximum pressure
    • 125 psig (water)
    • 100 psig (air)
  • Maximum temp
    • 130°F (54°C) for liquid
    • 100°F (38°C) for gases
  • 33 to 125°F (1 to 52°C) ambient temp
  • 10:1 turndown unless otherwise indicated
The King Instrument 7520 / 7530 series rotameters feature horizontal mounting connections for ease of installation and panel-mount capability. Utilizing a float and tapered tube design, these variable area flow meters have longer, more linear scales, better pointer stability, and greater accuracy than competitively priced products. Precision machined from durable cast acrylic stock, these King rotameters have brass or 316L stainless steel internal components and fittings. King flow meters are available in a variety of scales for increased accuracy and repeatability; these range from 2 to 10 inches (50 to 250mm).
