خانه/ ترانسمیتر/ ترانسمیتر فشار/ Foxboro/ IDP10S-T22B21FP | Foxboro Differential Pressure Transmitter
20901
ترانسمیتر فشار

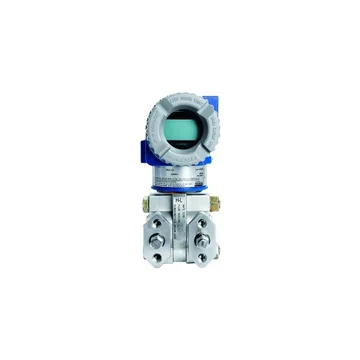

IDP10S-T22B21FP | Foxboro Differential Pressure Transmitter

برند :

Foxboro

پارت نامبر :

IDP10S-T22B21FP

شماره انبار :

ST-48216

زمان تحویل:

14 هفته

قیمت حدودی:

187,800,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

ModelDifferential Pressure Transmitter
ConditionNew & Original in Factory Packing
Factory Warranty12 Months
With -V Electronics0.87 and 50 kPa; 3.5 and 200 inH2O; 8.7 and 500 mbar
Span Limits B With -T or -F Electronics0.12 and 50 kPa; 0.5 and 200 inH2O; 1.2 and 500 mbar

Description / توضیحات

Ordering Information Model IDP Differential Pressure Transmitter Tier 10S Advanced Performance(1) with FoxCal™ Electronics Versions/Output Signals -T HART and 4 to 20 mA with SIL 2 Structure — Traditional(2) 22 316 ss Cover; 316L ss Diaphragm; Silicone Fill; Max Static Pressure=25 MPa (3626 psi) Process Connector Type (Same Material as the Process Cover) 2 1/2 NPT(3)(4) Conduit Connection and Housing Material 1 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing Electrical Certifications FP FM multiple certifications (includes FM Codes FA, FD or FN) Refer to PSS 2A-1S10 A for accuracy specifications. Maximum static pressure can be derated by optional selections. Not available with Structure codes 78 and 79 (PVDF process covers). Not available with structures that have seals on both sides.

Attachment / فایل ضمیمه

Product Specification Sheet: Absolute, Gauge, and Differential Pressure: IAP10S, IGP10S, IDP10S

Battle Card: Foxboro IDP10S Differential Pressure Transmitter

Differential Pressure Transmitters
