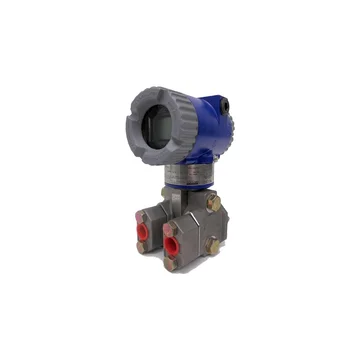

IDP10-T22A01C-L1K1 | Foxboro Pressure Transmitter

Name: IDP10-T22A01C-L1K1 | Foxboro Pressure Transmitter
Brand: Foxboro
Price: 2288100000 IRR
Availability: InStock

برند :

Foxboro

پارت نامبر :

IDP10-T22A01C-L1K1

شماره انبار :

ST-49353

زمان تحویل:

12 هفته

قیمت حدودی:

228,810,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	IDP10 - I/A Series, Electronic d/p Cell Transmitter for Differential Pressure Measurement
- For d/p	No connectors; both covers tapped for 1/4 NPT (316 ss only, no side vents)
Product Number	IDP10-T22A01C-L1K1
- One Remote Seal	1/2 NPT., 316 ss Process Connector on Side Opposite Seal (S3 to S6, SC to SF only)
Electrical Safety	C - CSA Certified Division 1 intrinsically safe, explosionproof, dust-ignitionproof, and Division 2, Classes I, II, and III
Instruction Books	K1 - Without Instruction Book and DVD; only "Getting Started" brochure is supplied.
- Two Remote Seals	No connectors; both covers tapped for capillary connection (S1, S2, SA, SB only)
- Flange Mount Hi Side	No connectors; both sides prepared for seals (F3 and F4 only)
Digital Indicator with Pushbuttons	-L1 - Digital Indicator, Pushbuttons, and Window Cover
Electronics Versions and Output Signal	-T - Intelligent; Digital, HART and 4 to 20 mA (Version -T)
Transmitter with Traditional Structure	22 -
Conduit Connection and Housing Material	1 - 1/2 NPT Conduit Connection, Aluminum Housing
Span Limits (Differential Pressure Units)	A¹ -
Process Connector Type (Material Same as Process Cover Material)²	0 -

Description / توضیحات

Ordering Information [Covers] 316 ss [Sensor] 316L ss [Fill Fluid] Silicone [kPa] 0.12 and 7.5 [inH2O] 0.5 and 30 [mbar] 1.2 and 75 NOTE: Span Limit Code A is not available with pressure seals, except for Sanitary Spud Seals Models PSSSR-.4 and PSSST-.4. Select Code "0" if a pressure seal is specified. Otherwise select Code 1 through 7.
