Features
- Cloud or local network capability
- Accelerometers:
- Triaxial + temperature 10 kHz FMax
- Full waveform and spectrum data
- Programmable internal RMS trigger
- Maximum 6400 lines of resolution
- Amperage Monitoring:
- 3 phases
- 5 to 1000A monitoring range
- 200,000 RPM range
- Temperature Monitoring:
- Thermocouple
- Infrared non contact sensor
- IP67 dust and water proof

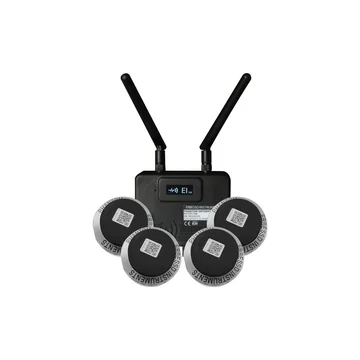

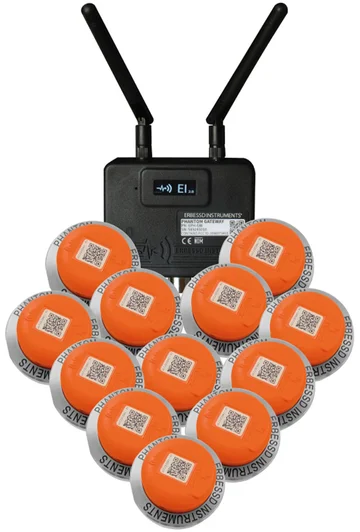

The Erbessd Reliability Phantom Remote Monitoring System integrates other parameters such as temperature, current, RPM and speed into a single diagnosis system. The sensors have a battery life that lasts enough to take up to 100,000 measurements and they are very easy to install. Equally important, the Phantom can send data to a local database or to the cloud-based system, EIAnalytic. At any moment, you can keep track of your machinery using any device such as a smartphone, computer or tablet.
The Phantom Vibration Monitoring System will help you to predict machine failures and save huge amount of costs due to non-programmed down times in production. For example, the following list are the most common failures that can be identified by our condition monitoring system:
Bearing Failure Stage I, II, III, and IV
Imbalance
Shaft and Bearing Wear
Mechanical Looseness
Misalignment
Electrical noise
Resonance
Among others
