Features
- Frequency range:
- High range: 0.5Hz to 10kHz (X,Y), 0.5Hz to 5.1kHz (Z)
- High Sensitivity: 0.5 Hz to 4 kHz (X,Y), 0.5 Hz to 1.8 kHz (Z)
- Sensing resolution (X, Y, Z):
- High range: 240 μg
- High Sensitivity: 60 μg
- -90dBm to -30dBm signal strength range
- MEMS sensor
- Bluetooth BLE 5.0 wireless protocol
- 2.4GHz operating frequency
- Lithium battery (CR2477)
- IP69 rated

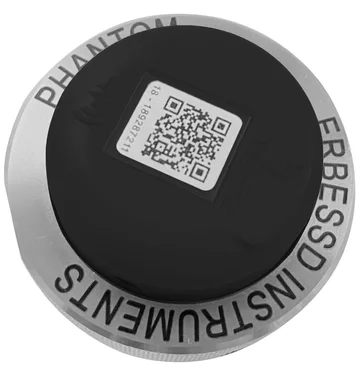

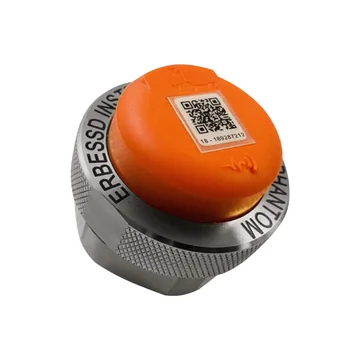

The Erbessd Reliability Phantom Gen 3 vibration sensor is designed to be compatible with any rotating machine. The design allows the sensor to be exposed to a majority of harsh environments, including 85°C (185°F) maximum temperature. The Phantom Gen 3 features an internal temperature sensor fully potted in epoxy that allows it to record the surface temperature of the machine with an accuracy of up to +/- 5°C (+/- 5°F).
