Features
- Max symmetric load: 30kg (66lb) / 0.1kg (0.22lb)
- 24x12x17in (609x304x431mm) dimensions
- 21inm (533m) maximum rotor diameter
- 33lb (15kg) maximum weight per base
- 0.250in (6.35mm) maximum radial displacement
- 2in (50mm) maximum shaft diameter
- 1.25in (31mm) / 0.5in (12mm) shortest distance between supports
- 19.75in (500mm) longest distance between supports

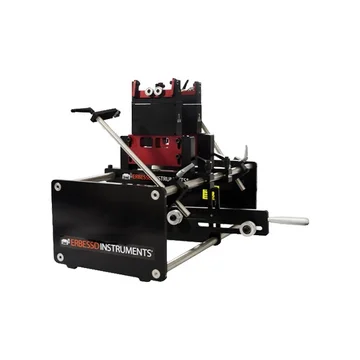

The Erbessd Reliability EI-30 Balancing Machine is ideal for high speed turbochargers as well as for other low weight rotors. The low inertia soft bearing suspension reduces the resistance to the vibration and increases the sensitivity and accuracy of the balancing process. The EI-30 provides balancing in 1 and 2 planes without trial weights. It also features adjustable pulleys and height for each support. The balancing speed is 60 to 15,000 RPM's.
