Features
- Real team measurements
- remote analysis
- Ideal for difficult access machines
- 2 channels recorded simultaneously
- 12 channels total
- 1 to 9 seconds
- 44,100Hz sample rate
- 30s to 24hr recording cycle times

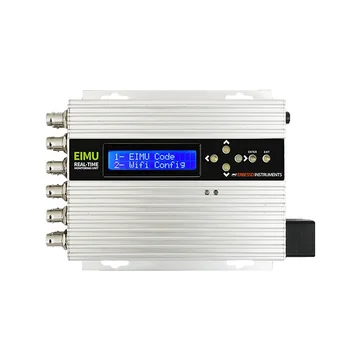

The Erbessd Reliability EIMU Vibration Monitor is designed to monitor in Real Time the vibration condition of any machine, it's a low-cost and easy to install modular system. The continuous monitoring optimizes supervision time avoiding the use of permanent human presence to control the system. All data collected is sent continuously through WiFi or Ethernet cable to the server, and this information can be seen and processed any time and anywhere in the world.
Each EIMU records 2 simultaneous channels (of the 12 available) and sends the information through the net (intranet or internet) to a server where it's stored. Once the data is saved, the EIMU switches to the next 2 channels and records them doing the same process until completing the whole sequence.
The EIMU works with a MySQL database and all data can be exported to different types of databases (SQL, MS Access, etc.) to meet the needs of a website or other type of server. Erbessd Instruments has created a specific website called EI Analytic that allows the user to remotely access this data and thus determine the condition of the machinery in real time from anywhere in the World.
