Features
- True-RMS sensing
- Measures AC Current to 600A and AC/DC Voltage to 600V
- Measures temperature: -40 to 752°F (-40 to 400°C)
- Measures DC Microamps output to test proper operation
- Measures capacitance and test diodes
- Tests 3-phase sequence and motor rotation
- Amp-Tip function
- Low pass filter
- Provides resistance and continuity measurement capabilities
- CAT III 600 V safety rated

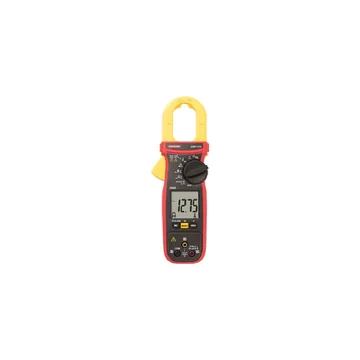

The Amprobe AMP-310 TRMS Clamp Meter is designed for HVAC, general electrical or motor testing applications. HVAC
technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame
sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush
current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and
voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the
tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full
range of standard multimeter features, including AC current, AC/DC voltage, frequency, True-RMS, non-contact voltage
detection, resistance, continuity and a CAT III 600 V safety rating.
