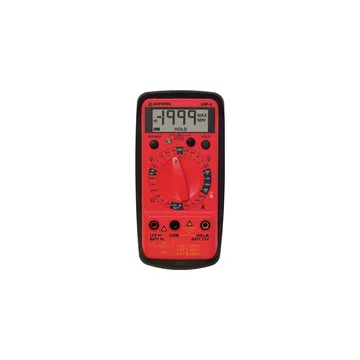

Amprobe 5XP-A Digital Multimeter

Features

• DC Voltage
  • Ranges: 200 mV, 2 V, 20 V, 200 V, 1000 V
  • Accuracy: ±(1.0 % rdg + 1 dgt)
• AC Voltage
  • Ranges: 200 mV, 2 V, 20 V, 200 V, 750 V
  • Accuracy: ±(1.5 % rdg + 5 dgts)
• AC/DC Current
  • Ranges: 200 μA, 2000 μA, 20 mA, 200 mA
  • Accuracy: up to ±(1.5 % rdg + 1 dgt)DC; ±(2.0 % rdg + 5 dgts) AC
• Resistance
  • Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ
  • Accuracy: up to ±(1.0 % rdg + 4 dgts)
• Continuity: Audible Indication < 75 Ω
• Diode Test, Overload Protection
• Battery load test with 1.5 V and 9 V capabilities
• Non-contact voltage detector: 70 to 600 VAC
• 3-1/2 digit LCD
• Cat I 1000 V, Cat II 600 V, Cat III 300 V safety ratings

The Amprobe 5XP-A compact digital multimeter provides superior features and accuracy in an affordable package. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient while freeing hands for work, the 5XP-A is the right choice for residential, commercial and general troubleshooting applications. The meter includes Cat I 1000 V, Cat II 600 V, Cat III 300 V safety ratings Amprobe 5XP-A compact digital multimeters include all the features and functions needed for a wide range of applications. The meter measures AC voltage to 750 V, DC voltage to 1000 V, AC and DC current to 200 mA, and resistance to 20 MΩ. Measurements are displayed on the 3-1/2 digit LCD. The multimeter also includes unique features such as VolTect non-contact voltage detection and a battery load test with 1.5 V and 9 V capabilities. Additionally, the meter has a continuity beeper, diode test, and overload protection. A non-contact voltage indicator senses voltages from 70 to 600 VAC. Other features of the Amprobe 5XP-A compact digital multimeter include low battery and overrange indication on the display; automatic polarity determination with indication of negative polarity; and a Min/Max function which records minimum and maximum values. The Amprobe 5XP-A digital multimeter ships complete with: Test leads (TL245A) 9 V battery Magne-Grip holster with magnetic hanging strap (H2-XRA) Spare fuse Manual
