Features
- DC Voltage
- Ranges: 200 mV, 2 V, 20 V, 200 V, 1000 V
- Accuracy: ±(0.5 % rdg + 1 dgt)
- AC Voltage
- Ranges: 200 mV, 2 V, 20 V, 200 V, 750 V
- Accuracy: ±(1.5 % rdg + 5 dgts)
- AC/DC Current
- Ranges: 200 μA, 2000 μA, 20 mA, 200 mA, 2 A
- Accuracy: up to ±(1.0 % rdg + 2 dgt)DC; ±(1.5 % rdg + 5 dgts) AC
- Resistance
- Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 2000 MΩ
- Accuracy: up to ±(1.0 % rdg + 4 dgts)
- Continuity: Audible Indication < 25 Ω
- Diode Test, Overload Protection
- TTL logic test for digital circuits
- Non-contact voltage detector: 70 to 600 VAC
- 3-1/2 digit LCD
- CAT II 1000V, CATIII 600V, CE, N10140 safety ratings

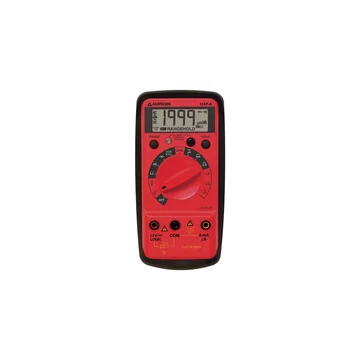

The Amprobe 15XP-B compact digital multimeter for electronics and test applications is an excellent choice for
electronics engineers and technicians onsite or in the field. The 15XP-B has the highest voltage rating in this
class of meter and includes an autoranging display for faster measurements. An integrated tilt stand makes it
easy for bench use. The 15XP-B has CAT II 1000 V, CATIII 600 V, CE, N10140 safety ratings.
The Amprobe 15XP-B compact digital multimeter includes all the features and functions needed for a wide range of
applications. The meter measures AC voltage to 750 V, DC voltage to 1000 V, AC and DC current to 2 A, and resistance
to 2000 MΩ. Additionally, the meter has a continuity beeper, diode test, and overload protection. A non-contact
voltage indicator senses voltages from 70 to 600 VAC. All measurements have wide testing ranges and high accuracy.
Testing results are displayed on the 3-1/2 digit LCD. The Amprobe 15XP-B digital multimeter also includes a Data
Hold function as well as a TTL logic test for digital circuits
The Amprobe 15XP-B digital multimeter ships complete with:
Test leads (TL245A)
2 A/1000 V Fuse (FP200)
9 V battery
Magne-Grip Holster
Manual
