Features
- Measures AC current up to 1000 A
- Measures AC/DC voltage up to 600 V
- Resistance
- Continuity beeper
- Relative zero mode
- Auto power off
- Data hold
- Accommodates conductors up to 45mm (1.77")

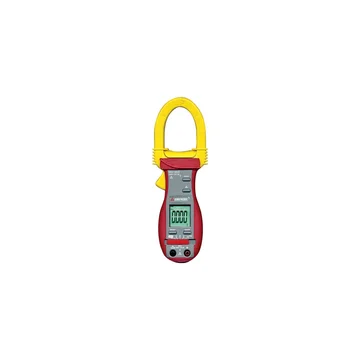

The Amprobe ACD-6 PRO 1000 A clamp-on multimeter measures AC and DC voltage to 600 V and AC current to 1000 A. The
Amprobe ACD-6 multimeter includes features such as resistance measurement, continuity beeper, relative zero mode,
auto power off, and data hold.
The Amprobe ACD-6 PRO 1000 A clamp-on multimeter has a 3-3/4 digit, 4000 count, LCD display and the clamp jaws can
accommodate conductors up to 45 mm (1.77") in diameter. Amprobe ACD-6 PRO multimeters are simple to operate and
an excellent option for high current applications.
The Amprobe ACD-6 PRO digital clamp-on multimeter ships complete with:
Test leads (MTL-90B)
Carrying case
Manual
Amprobe ACD-6 PRO Digital Clamp-on Multimeter Specifications
Feature
Range
Accuracy
DC Voltage
400.0 mV
1.0% + 3d
4.000 V, 40.00 V, 400.0 V
1.7% + 3d
600 V
2.0% + 4d
NMRR:
>50 dB @ 50/60 Hz
CMRR:
>120 dB @ Dc, 50/60 Hz, Rs=1kΩ
Input impedance:
10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range)
Audible continuity tester
Open circuit voltage:
0.4 VDC typical / 400.0 Ω
1.5% + 6d
Audible threshold:
between 10 Ω and 120 Ω
Resistance
400.0 Ω
1.5% + 6d
4.000 kΩ, 40.00 kΩ, 400.0 kΩ
1.0% + 4d
4.000 MΩ
1.5% + 4d
40.00 MΩ
2.5% + 4d
Open circuit voltage:
0.4 VDC typical
AC Voltage
50 Hz-500 Hz / 400.0 mV
4.0% + 5d
50 Hz-60 Hz / 4.000 V, 40.00 V, 400.0 V
2.0% + 5d
50 Hz-60 Hz / 4.000 V, 40.00 V, 400.0 V
2.0% + 5d
60 Hz-500 Hz / 4.000 V, 40.00 V, 400.0 V
2.5% + 5d
50 Hz-500 Hz / 600.0 V
3.0% + 5d
CMRR:
>60 dB @ Dc to 60 Hz, Rs=1kΩ
Input impedance:
10 MΩ, 30 pF nominal
Diode Tester
Open circuit < 1.6 V DC
Voltage test current (Typical) 0.4 mA
AC Current (Clamp-on)
50 Hz/60 Hz
400.0 A
1.5% + 5d
1000.0 A
1.5% + 5d
