Features
- 0 to 600 A RMS
- True RMS AC measurements
- Self-contained, no exposed connections
- Overload indication
- Optically isolated USB 2.0 output (cable included)
- One button operation
- Alarm function
- 5 LED indicators quickly and clearly display logger status
- Includes FREE DataView software for data storage, real-time display, analysis and report generation
- USB cable included
- 300 V Cat IV, 600 V CAT III

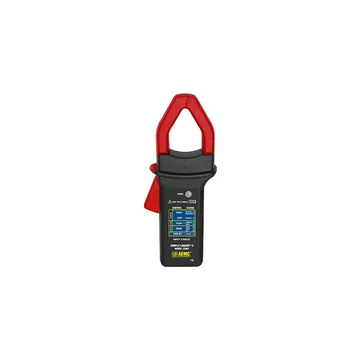

The AEMC Simple Logger II CL601 is a battery-powered, one-channel, clamp-on AC current data logger.
Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of
±2Hz around the nominal line frequency (50 or 60 Hz). Harmonic measurements are calculated from these 64 samples.
The The AEMC Simple Logger II TRMS Model CL601 records TRMS at a rate of up to eight times per second. The measurement process is
performed not more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s)
are ignored between measurement intervals. The main advantage of the logger is its ability to perform a variety of recording tasks
with easy and intuitive setup from a computer using DataView software.
DataView application software is included, providing real-time viewing of measurement data even while recording. Instrument
configuration, data storage and report generation from pre-defined templates or operator custom designed templates are also standard
features. Several data loggers can be synchronized to record at the same time intervals using DataView as well.
