Features
- Dual range 300/3000A user selectable per channel
- 64 samples per cycle
- Programmable storage rates from 125ms to 1 day
- 4 user selectable storage modes
- Stores up to 1,000,000 measurements in non-volatile memory
- Standard Alkaline batteries for a period of 180 days or more
- Lightweight, compact, weatherproof
- 6 LED indicators quickly and clearly display logger status
- Wireless Bluetooth communication (Bluetooth Module included)
- Includes FREE DataView® software
- EN 61010-1; 600V CAT IV, 1000V CAT III

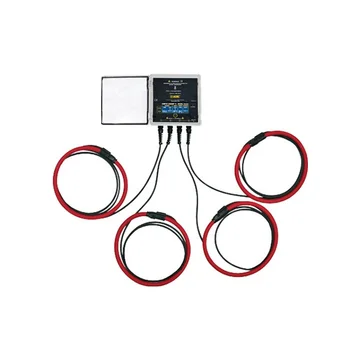

The AEMC AL834 Simple Logger II (Bluetooth Edition) is a 4-channel AC current data logger with four integral flexible current
sensors. Each sensor is 24 inches long and capable of wrapping around an 8 inch conductor.
The AEMC AL834 has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors
are water resistant rated to IP 65. A selection of data storage modes, as well as data sampling rates is user programmable
through the DataView® application software provided. Up to 1,000,000 measurements can be stored in internal nonvolatile memory.
The Model AL834 is powered by four C cell alkaline batteries capable of providing six months or longer recording time. Data
storage rates as fast as 8 per second are user programmable. Communication to the DataView software is accomplished through
wireless Bluetooth technology. The Bluetooth adapter, provided, facilitates this communication link.
Applications include:
Single/split phase and 3 phase monitoring
Neutral and ground current monitoring
Intermittent problem detection
Harmonic current monitoring using DataView software
Machine load monitoring
Fault current detection
Load profiling
